Eccentric Gear And Multi Link Precision Press

The Eccentric Gear and Multi Link Precision Press is a mechanical press that uses an eccentric gear drive system combined with a multi-link arrangement to deliver accurate, stable, and repeatable stamping performance. This configuration produces smooth ram travel, balanced force application throughout the stroke, and reduced lateral forces on the slide—leading to better part consistency, extended tooling life, and lower risk of die damage or workpiece distortion.

Typical fields of use include:

• Automotive components (brackets, reinforcements, small panels, structural stampings)

• Electronics (connectors, terminals, metal shields, casings)

• Home appliances (frames, panels, brackets, internal supports)

• Precision sheet metal fabrication and hardware

• Progressive, transfer, or single-station operations involving blanking, piercing, bending, embossing, shallow drawing, or forming

Main Construction Details

Frame

Fabricated from welded steel plates (crossbeam, columns, base), assembled with pre-stressed tie rods to form a rigid, distortion-resistant structure suitable for eccentric or uneven loading conditions.

Drive

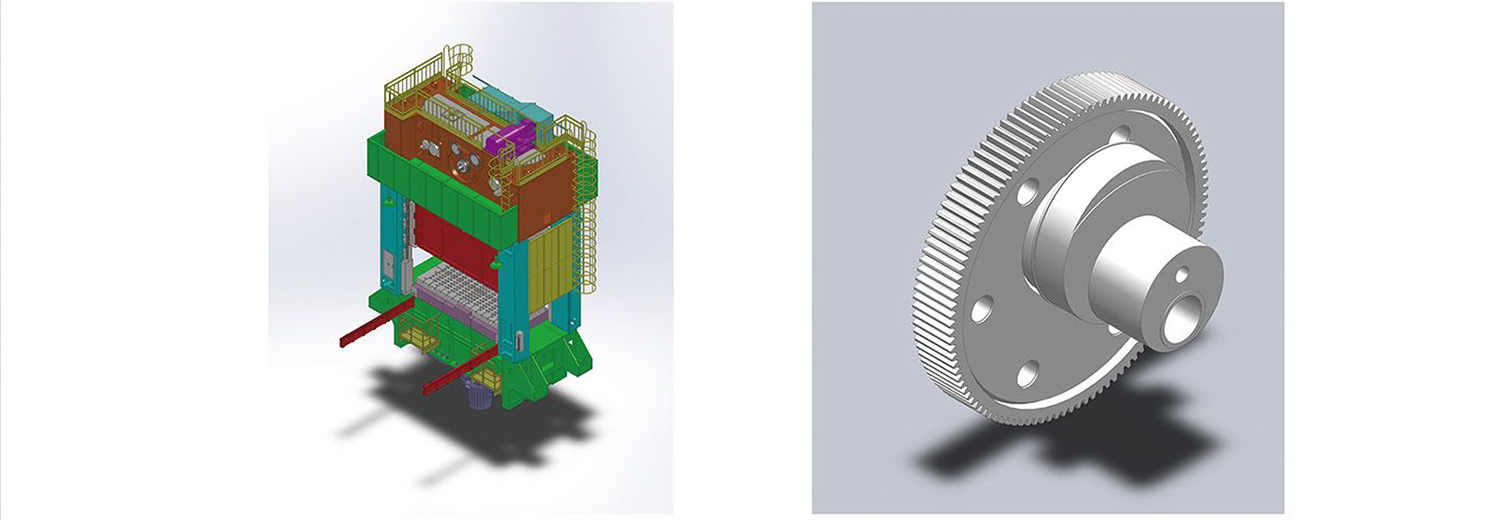

Eccentric gear mechanism for uniform torque transfer, reduced vibration, lower operating noise, and dependable performance across a wide speed range.

Linkage

Multi-link design that extends the period of slide parallelism, distributes load more evenly, and minimizes angular deviation during pressing.

Guidance System

Long, four-corner eight-face rectangular guide ways on the slide for precise tracking, strong anti-tipping capability, and maintained accuracy over extended production runs.

Overload Protection

Hydraulic overload release (four-point monitoring) that automatically unloads the press when tonnage exceeds preset limits, protecting the machine frame, crankshaft, and dies.

Lubrication

Automatic forced-circulation system delivering metered oil to bearings, guides, and gears, complete with fault detection on supply lines for early warning of issues.

Controls

PLC controller with touchscreen HMI for adjustment of speed, stroke position, tonnage monitoring, batch counting, job memory, and diagnostic messages.

Expandability

Interfaces and mounting provisions support:

• Hydraulic quick-die-change clamps
• Coil-feed lines (decoiler, straightener, feeder)
• Transfer or robotic part handling
• Additional safety enclosures or guarding

Safety Provisions

Dual-hand control initiation, emergency stop buttons at operator stations, slide-position interlocks, overload signaling, and compatibility with light curtains or safety gates.

Material and Process Coverage

Materials processed:

• Cold-rolled steel
• Hot-rolled steel
• Stainless grades
• Aluminum
• Copper-based alloys
• Pre-coated/galvanized sheets
• Certain high-strength steels

Processes supported:

• Blanking
• Piercing
• Compound and progressive stamping
• Bending
• Coining
• Embossing
• Shallow-to-medium drawing
• Multi-stage forming

Production types:

• Medium-batch with frequent changeovers
• High-volume automated lines
• Stand-alone precision work

Practical Advantages

• Holds dimensional tolerances tightly even during long production runs
• Operates with noticeably lower vibration and noise levels
• Reduces setup and die-change time when equipped with quick-clamp options
• Maintains reasonable energy consumption for the tonnage class
• Follows conventional maintenance schedules (lubrication checks, filter replacement, guide clearance inspection)
