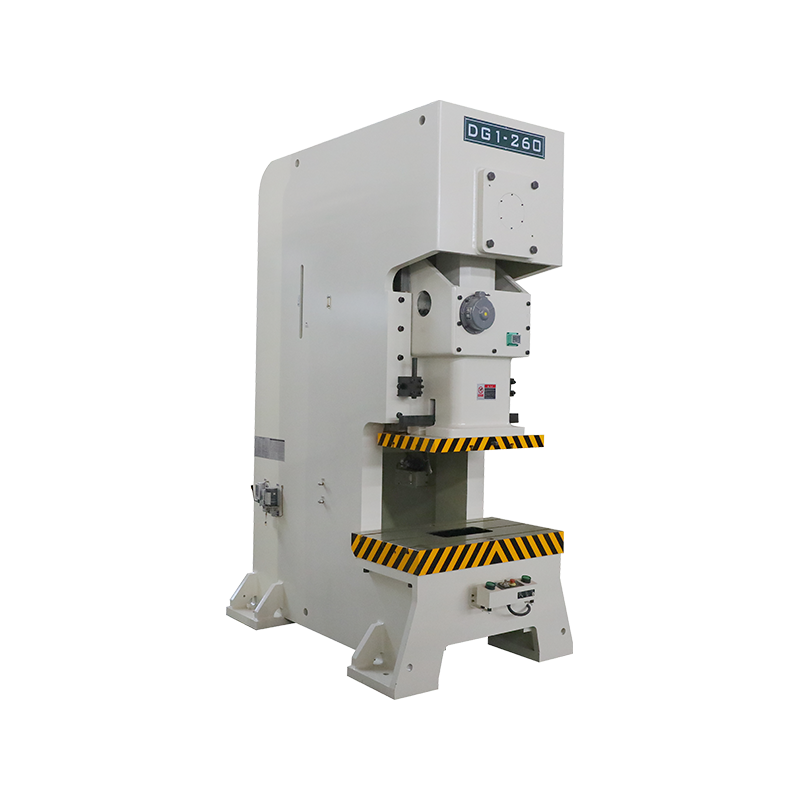

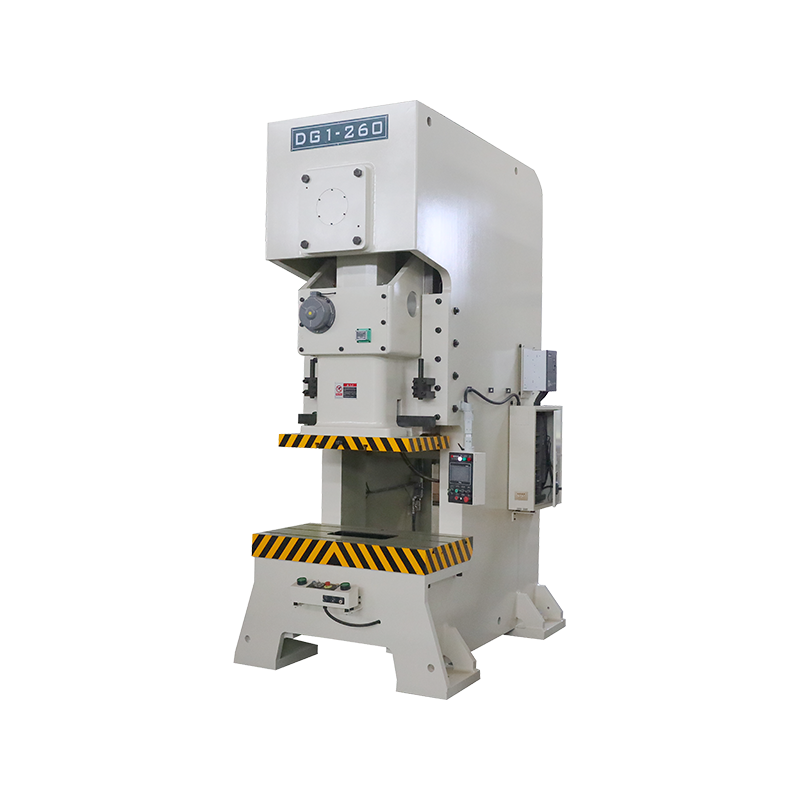

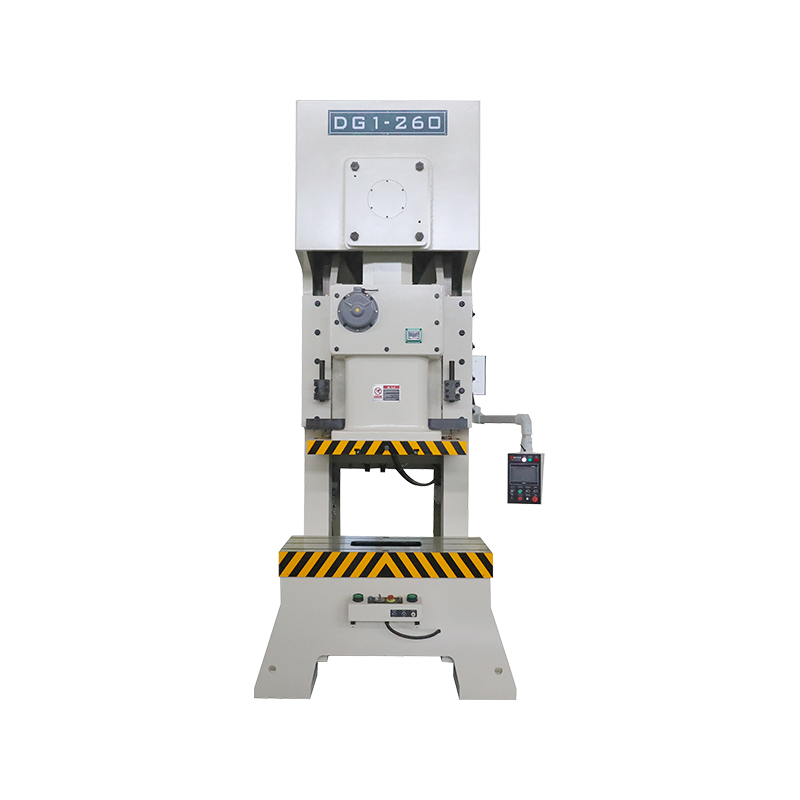

DG1 High Precision and Strong Steel Frame Punching Machine

A high precision and strong steel frame punching machine is a piece of industrial equipment designed for punching holes in various materials, typically metal sheets, with a high degree of accuracy and strength. These machines are widely used in manufacturing industries for their efficiency, precision, and durability.

Key Features of High Precision Punching Machines

Robust Steel Frame: The machine is built with a strong steel frame that provides stability and durability during operation. This frame is designed to withstand the forces exerted during the punching process, ensuring long-term reliability.

High Precision Punching: The machine is equipped with precision components, such as high-quality bearings and linear guides, to ensure that the punching process is accurate to the smallest detail. This precision is crucial for industries where the fit and finish of the punched parts are critical.

Adjustable Punching Dies: The machine features adjustable dies that can be changed to accommodate different hole sizes and shapes. This flexibility allows the machine to be used for a wide range of applications.

Programmable Control System: Modern punching machines often come with a programmable control system that allows operators to set the punching parameters, such as the number of holes, the pattern, and the speed of punching. This feature enhances the machine's versatility and efficiency.

Safety Features: High precision punching machines are equipped with various safety features to protect the operator and the machine. These may include emergency stop buttons, safety guards, and interlocking systems to prevent operation when the machine is not properly set up.

Efficient Power System: The machine is powered by a robust motor that provides the necessary force for punching. The power system is designed to be energy-efficient, reducing the overall operating costs.

Ease of Operation: The user interface of the machine is designed to be user-friendly, allowing operators with varying levels of experience to use the machine effectively.

Low Maintenance: High precision punching machines are designed for low maintenance, with easily replaceable parts and minimal downtime for repairs.

Versatility: These machines can handle a variety of materials, including but not limited to steel, aluminum, copper, and other metal alloys, making them suitable for diverse applications.

Functions of High Precision Punching Machines

Hole Punching: The primary function of the machine is to punch holes in metal sheets with high precision, which is essential for parts that require a high level of fit and finish.

Bending and Forming: Some machines are capable of not only punching holes but also bending and forming metal sheets into specific shapes, adding to their versatility.

Cutting and Shearing: In addition to punching, these machines can also perform cutting and shearing operations, allowing for the creation of more complex parts.

Nesting: Some advanced machines can perform nesting operations, which involve arranging multiple parts on a single sheet to reduce material waste.

Automation Integration: High precision punching machines can be integrated into automated production lines, allowing for increased efficiency and reduced labor costs.

Quality Control: The machines often have built-in systems for quality control, such as sensors that detect deviations from the set parameters, ensuring consistent product quality.

Material Handling: Some machines are equipped with material handling systems that automatically load and unload the metal sheets, further streamlining the production process.

Data Management: Advanced machines may have data management capabilities, allowing operators to store and retrieve punching programs for future use, which is beneficial for repeat orders.

Energy Saving: Modern machines are designed with energy-saving features, such as energy recovery systems, which can reduce the overall energy consumption during operation.

· High-rigidity frame design, welded with high-quality steel plates, and processed through internal stress elimination process to improve the accuracy, stability and reliability of the entire machine.

· The machine uses high alloy steel, single axis, a work center, crankshaft connecting rod support structure, optimized design

· In order to ensure the relative stability of the machine's operation, a symmetrical two balancer device design is adopted

· The automatic mold adjustment system has a mold adjustment precision of up to 0.1mm, which is safe, convenient and reliable.

· The crankshaft, gear set, and connecting rod functional parts have extremely high comprehensive performance and durability after hard oxidation and grinding processes.

· Use a highly sensitive and reliable clutch/brake device and the world's top double solenoid valve and overload protection device to ensure the accuracy and safety of the press slider's stop at the operating stage.

· The machine structure is reasonably designed to facilitate automated production, reduce costs, and improve efficiency.

· Advanced design concept, low noise, low consumption, power saving.
